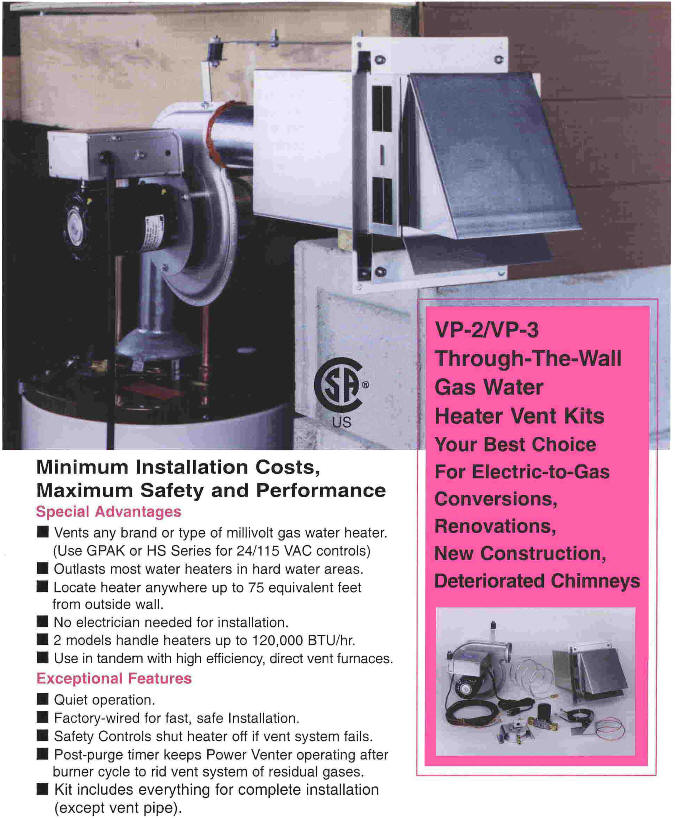

SIDE WALL POWER VENTER KIT
for GAS WATER HEATERS
Everything
needed to turn a water heater into a side wall vented water heater (except
vent pipe) is contained in the one easy kit.
Problem:
Installing or replacing expensive "power vented" water
heaters that in some cases have a short life span due to local water issues.
Solution:
Purchasing a basic economical water heater and using/re-using the VP-2 power
venter kit.
If you haven’t recently compared the cost difference between a manufacturers
expensive power-vented model to the same basic model and a Water Heater Vent
Package, VP-2, check it out. The
VP series is designed from the start for easy installation by a plumber or
contractor that doesn’t need an electrician’s license.
The VP power venter plugs into an electrical outlet and the rest of the
color-coded wiring is all low voltage. |
|

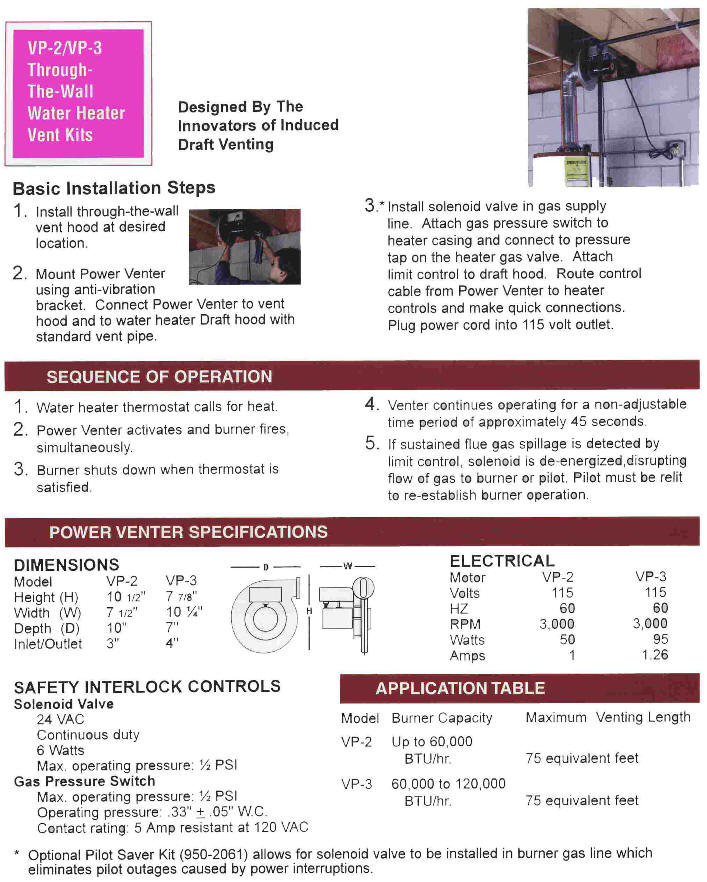

click for full specification and installation guide |
|
|
|
|
|

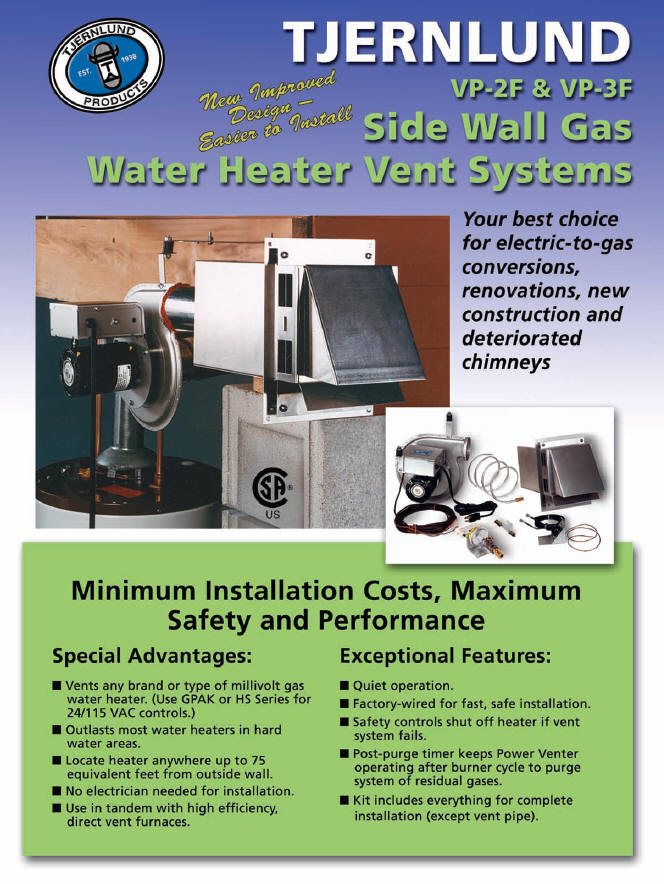

Models: VP-2F
CSA Design Certified, used
for Side Wall venting any brand or type of millivolt
residential or light commercial gas water heater.
Vents up to 75 equivalent feet and includes:
Post-Purge Relay/Timer, Gas Pressure Switch,
Thermocouple Junction Adapter, Linear Limit Spillage
Switch, and Vent Hood. Factory pre-wired electrical
box and Control Cables eliminate the need for an
electrician. VP-2F will vent up to 60,000 BTU/hr |
|
|
|
|
|
|
Models: VP-3F
CSA Design Certified, used
for Side Wall venting any brand or type of millivolt
residential or light commercial gas water heater.
Vents up to 75 equivalent feet and includes:
Post-Purge Relay/Timer, Gas Pressure Switch,
Thermocouple Junction Adapter, Linear Limit Spillage
Switch, and Vent Hood. Factory pre-wired electrical
box and Control Cables eliminate the need for an
electrician. VP-3F 60,000 up to 120,000 BTU/hr.
|
|
|
|
|
|
|
|
