Side Wall Vent
Hoods
MODELS: VH1-3,
VH1-4, VH1-6, VH1-8, VH1-10
Specially
designed to terminate Tjernlund Side Wall Vent Systems. They are
also an approved method of terminating many horizontally vented
appliances. Vent hoods feature heavy duty, corrosion resistant aluminum
construction. Models VH1-3, 4 and 6 also have an additional heat shield
for built in clearances from combustibles. Building exteriors are kept
clean while the aesthetics of the structure remain undisturbed. All
mounting hardware is included. |
|
DIMENSIONS
Model
|
A Dia.
|
B
|
C
|
D
|
E
|
F
|
G
|
Rough-In
Dimensions |
|
VH1-3
|
3" |
6 1/4" SQ.
|
8 1/2" |
10" |
10" |
5 1/4" |
7 3/4" |
6 3/4" SQ.
|
VH1-4
|
4" |
7 1/2" SQ.
|
7 1/8" |
13" |
8 5/8" |
7 3/8" |
11" |
8" SQ. |
VH1-6
|
6" |
8 1/2" Dia.
|
7 7/8" |
12" |
9 1/2" |
10 1/2" |
10" |
9" Dia. |
DIMENSIONS
Model
|
A Dia.
|
B
|
C
|
D
|
E
|
Rough-in
Dimensions |
|
VH1-8
|
8" |
16" |
7 3/4" |
18 3/8" |
20" |
8 1/2" Dia.
|
VH1-10
|
10" |
16" |
7 3/4" |
18 3/8" |
20" |
10 1/2" Dia.
|
Click here for Prices, Quotes & E-mail at
info@volko.com
|

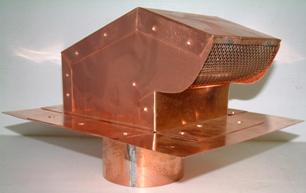

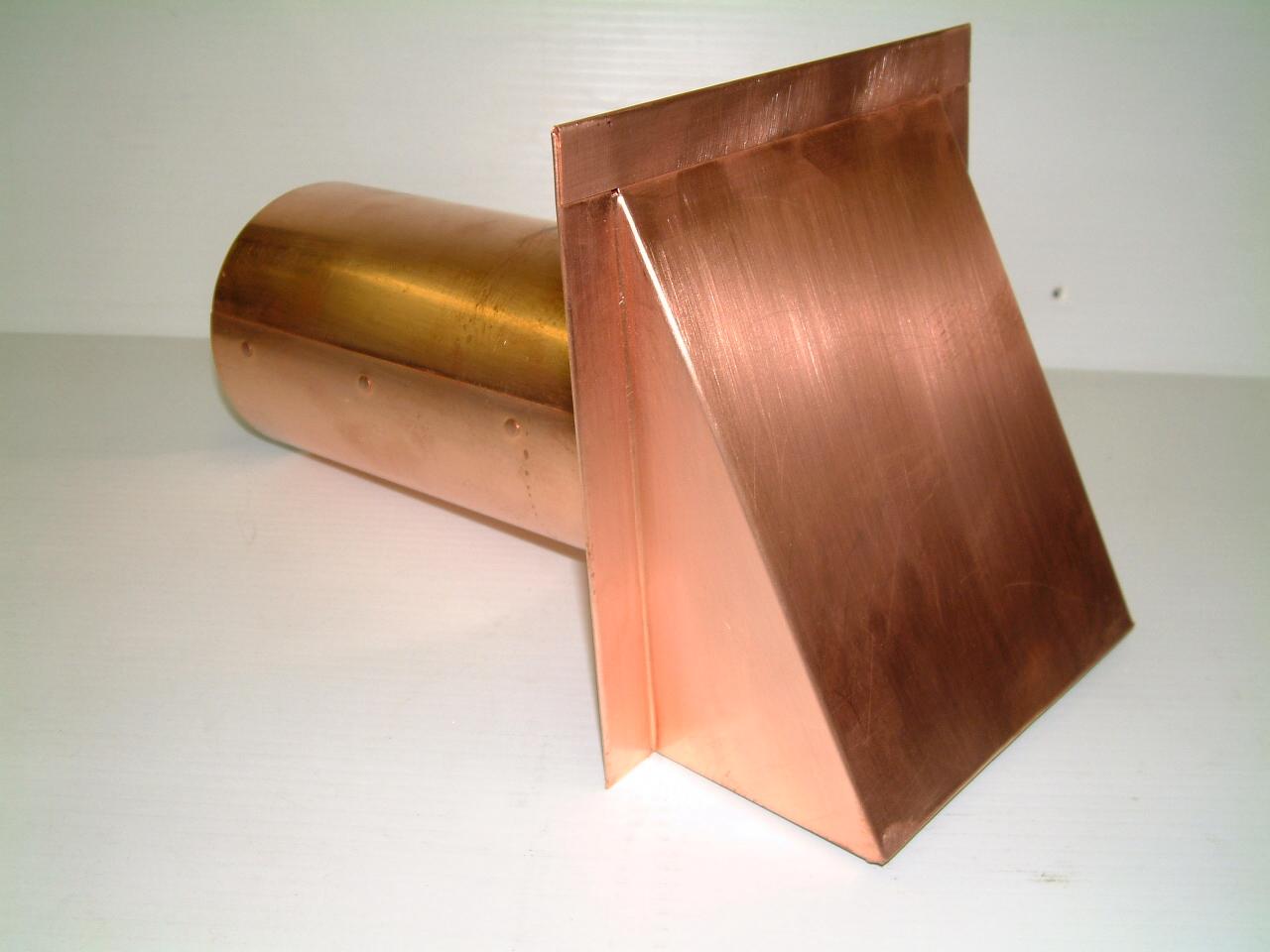

Looking for copper wall caps or
