Model No.
PAI-1T & PAI-2T

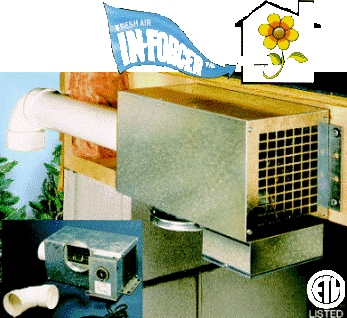

The Timer/Clock on the
Fresh Air IN-FORCER may be set to operate the unit in one of two ways.
Easy to follow instructions and examples of these methods can be found
in the IN-FORCER'S installation & operation manual.
Life-Style: The IN-FORCER
may be cycled according to the life-style of the occupants. One
scenario would be set the timer to operate the IN-FORCER for several
hours straight in the morning and evening when a family is most active
cooking, using bathroom facilities and doing laundry. The IN-FORCER
should be cycled for 15 minutes each hour during non peak activity
periods to compensate for exhausted air and to dilute indoor pollution
and moisture.
Air Changes per Hour
(ACH): ACH is a method to measure the volume of fresh air necessary to
replace a percentage of the total volume of air inside the living space
of a home. In general, studies recommend a minimum of 1/4 ACH. The
IN-FORCER can be operated constantly or it can be cycled to deliver the
amount of fresh air needed to achieve a desired air change rate. |
|
CALCULATING EQUIVALENT
LENGTH |
EQUIVALENT LENGTH OF ELBOWS |
The
performance shown is based on equivalent feet. To determine
the equivalent feet of an installation add
the length of the 3" PVC inlet pipe plus the equivalent length of any
elbows. Do not include the intake elbow or gooseneck, they have already
been factored into the performance data. Use the same method to
determine the equivalent feet if a
6" outlet duct is installed. |
ELBOW
DIAMETER |
90 |
45 |
3" |
5' |
2.5' |
6" |
10' |
5' |
|
DIMENSIONS & MOTOR SPECIFICATIONS
A |
B |
C |
D |
E |
F |
17 3/4" |
15 5/8" |
8 7/8" |
2 5/8" |
8" |
9 3/8" |
 |
